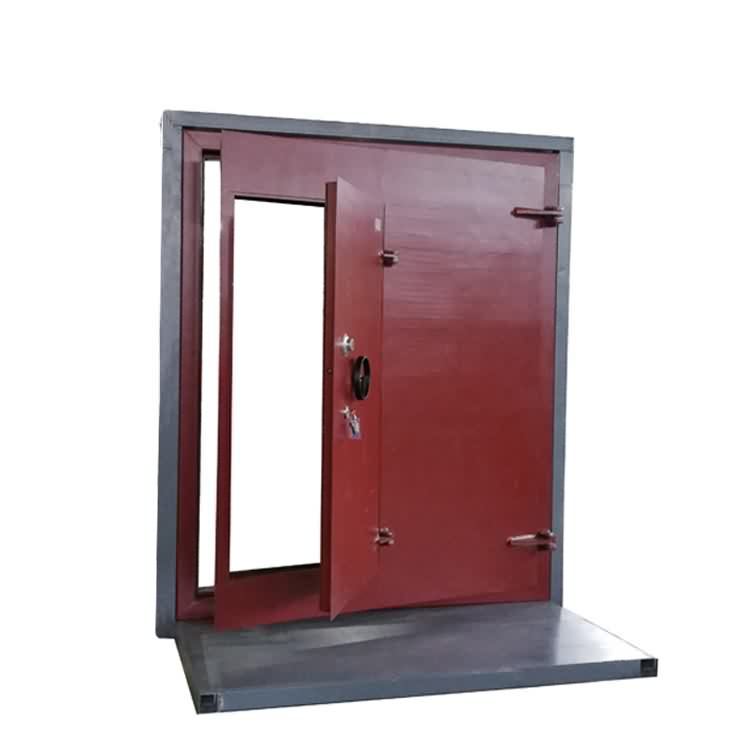

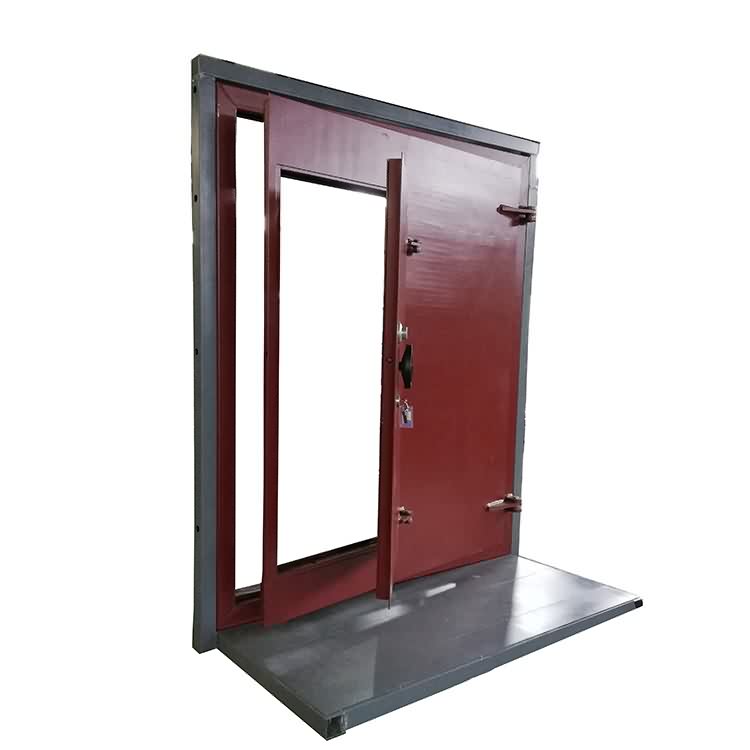

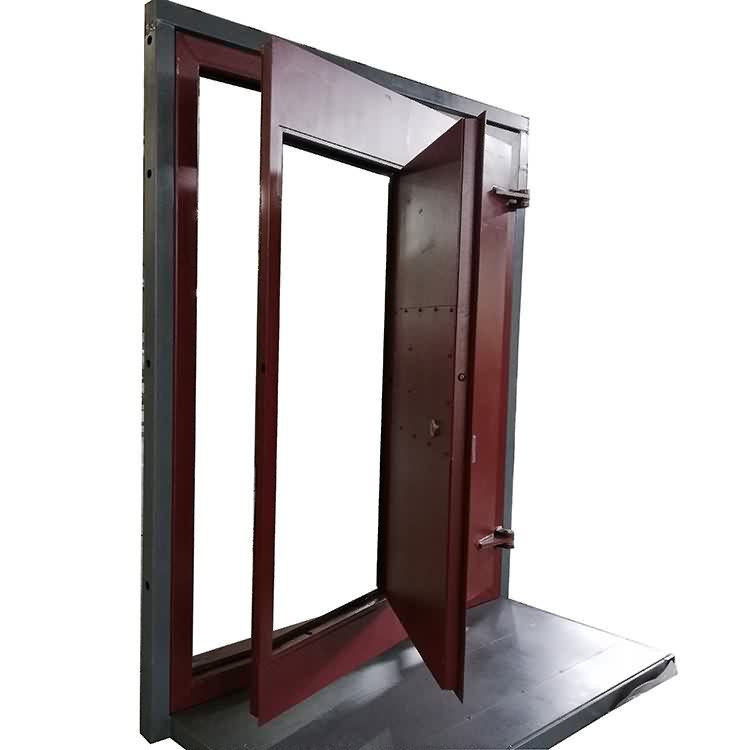

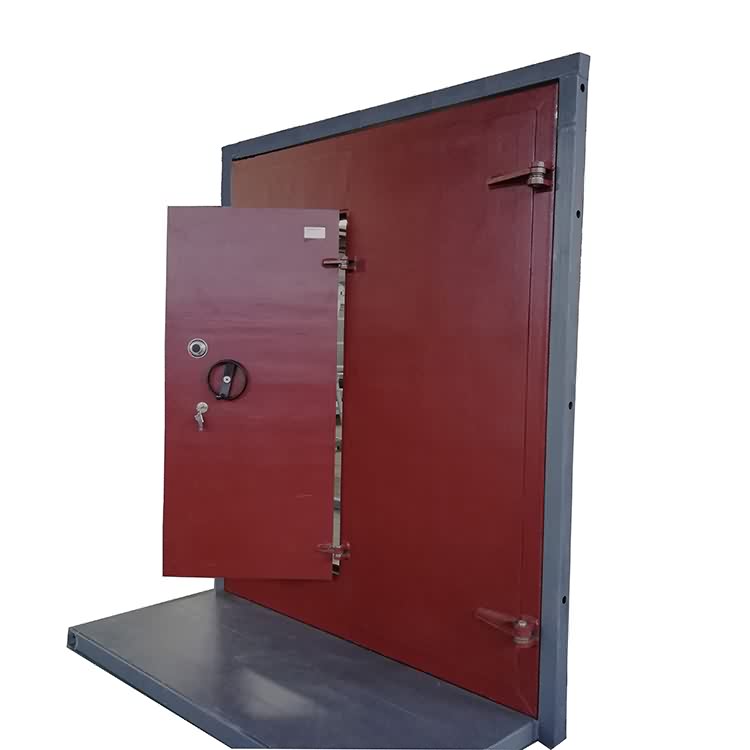

DIAN-BD1701 Single leaf blast door with pedestrian gate

Short Description:

Product Detail

Product Tags

Industrial blast resistant door with pedestrian door. They can be operated manually, electrically or pneumatically and are also designed to an exact specification in a range of configurations, finishes and colors. The structure and composition of the doors can easily be customized and upgraded, depending on their operational environment.

Products are engineered to meet the most demanding blast requirements with the lightest construction possible.


Model number DIAN-BD1701
color Customized
Anti-explosion ability 190Kpa(3mm)/260Kpa(5mm)
Open style Manual, Swing
Pedestrian door option
Application Army, power station, ammunition depot etc.
Surface treatment Powder-coat

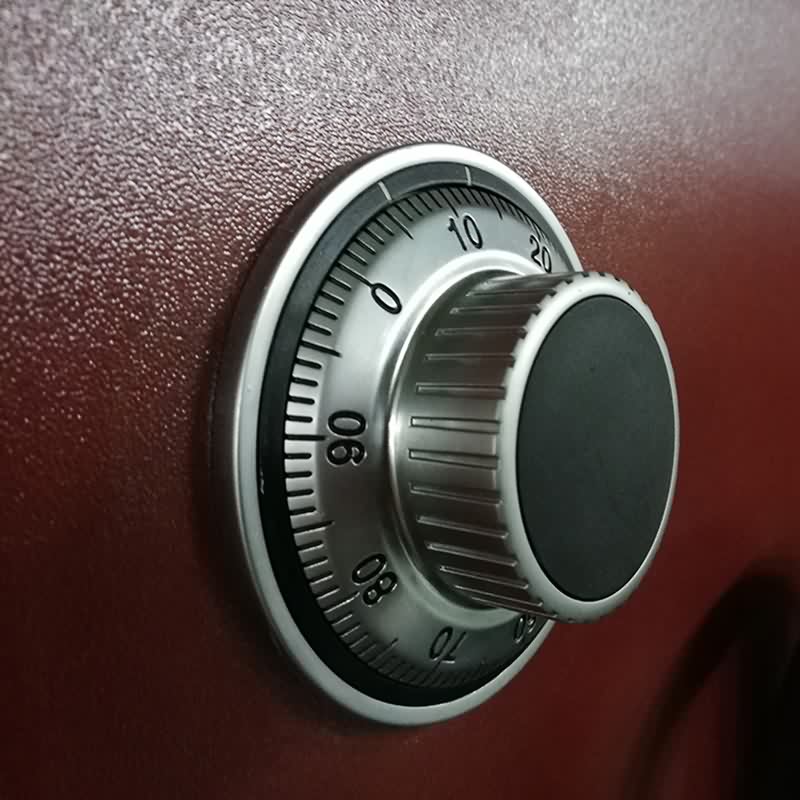

Lock option Fingerprint lock;Coded lock
Panic Heavy duty plastic panic
Seal Rubber sealing strip
Door size High:2100mm-2700mm;Wide:800mm-1800mm
Steel plate Thickness 3mm / 5mm
Panel thickness Standard 60mm (customizable)
Weight 90~135kg/
Door leaf material: 3mm/5mm Carbon steel panel on both side
Skeleton material: 50 * 50 * 5/3 mm square skeleton, skeleton small grid area is not more than 0.3 square meters.
Door frame material: 50 * 100 * 5/3 mm rectangular tube production, set the installation hole and hinge welding parts to strengthen the production of anti-riot edge and buffer seal
Infill rock wool (mineral wool)
Packing & Delivery
Packing Plastic Protection Foam between each sections. Wooden case or carton packing
Delivery time 15~30 days after receive the deposit
MOQ 1 set
