Safety door,Explosion –proof door for Petrochemical Industries DIAN-BD1703

Short Description:

Product Detail

Product Tags

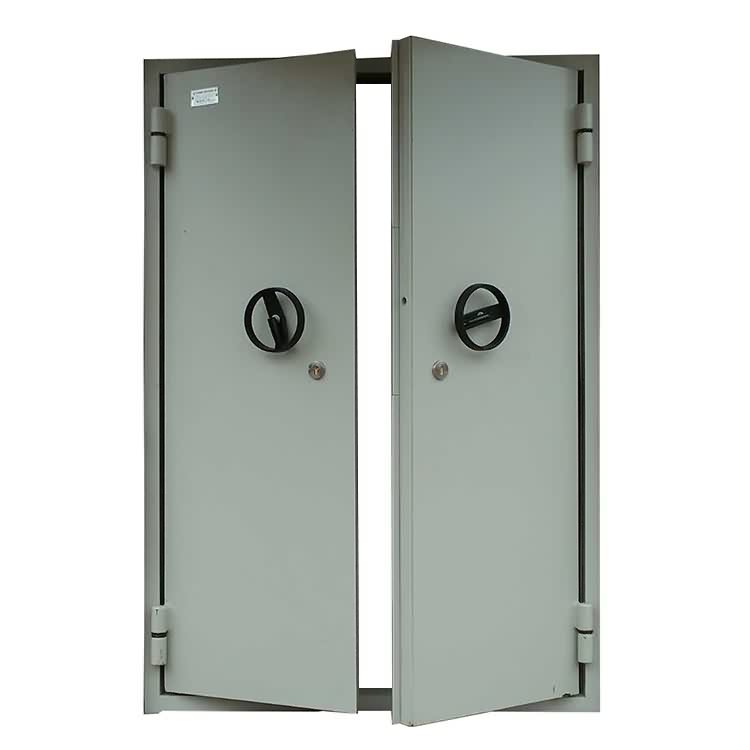

Industrial blast-proof door with double leaves is designed to protect human life from any accidental explosions that occurred in petrochemical plants or industrial manufacturing facilities. It offers bullet resistant protection to protect against bullet resistant along with blast rating.

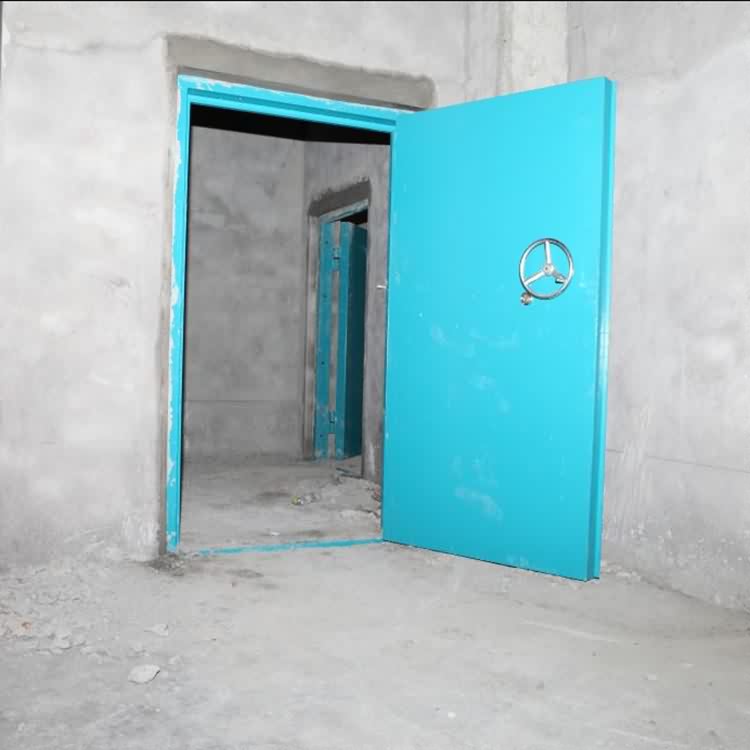

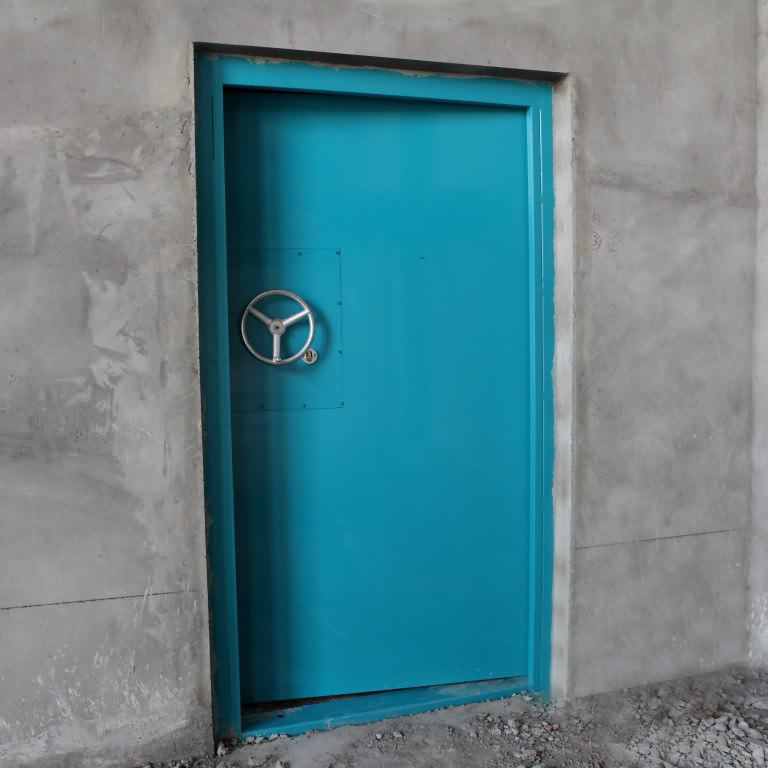

Industrial blast resistant door with the single leaf is security tested and supplied as single leaf configuration. Blast resistant door is reinforced for a continuous hinge, door closer and an optional panic bar. It also has excellent thermal and sound reduction properties and a fire rating of 2 hours.


Model number DIAN-BD1703
Panel color Customized
Anti-explosion ability 190Kpa(3mm)/260Kpa(5mm)
Open style Manual, Swing
Application Petrochemical Industries,power station etc.
Surface treatment Powder-coat
Lock option Fingerprint lock;Coded lock
Panic Heavy duty steel panic
Seal Rubber sealing strip
Door size High:2100mm-2700mm;Wide:800mm-1800mm
Steel plate Thickness 3mm / 5mm
Panel thickness Standard 60mm (customizable)
Weight 90~135kg/
Door leaf material: 3mm/5mm Carbon steel panel on both side
Skeleton material: 50 * 50 * 5/3 mm square skeleton, skeleton small grid area is not more than 0.3 square meters.
Door frame material: 50 * 100 * 5/3 mm rectangular tube production, set the installation hole and hinge welding parts to strengthen the production of anti-riot edge and buffer seal
Infill rock wool (mineral wool)
Packing & Delivery
Packing Plastic Protection Foam between each sections. Wooden case or carton packing
Delivery time 15~30 days after receive the deposit
MOQ 1 set

Anti-Explosion 190/260Kpa, High Duty-Cycle Hinges & Latches, Trouble-Free Operation.

Your Complete Design, Engineering & Fabrication Source for Blast Doors. Inquire Now
