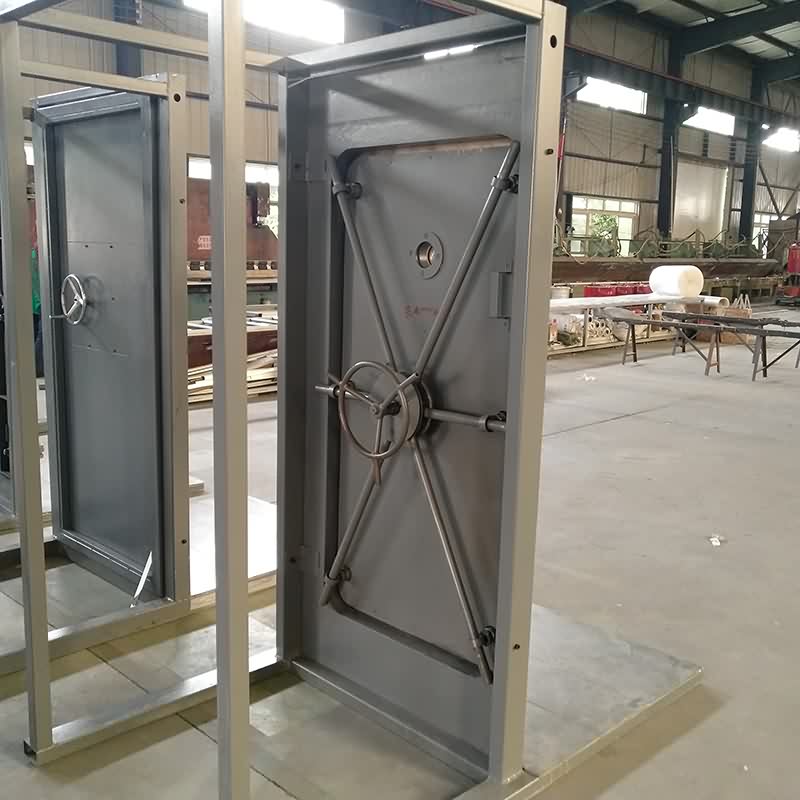

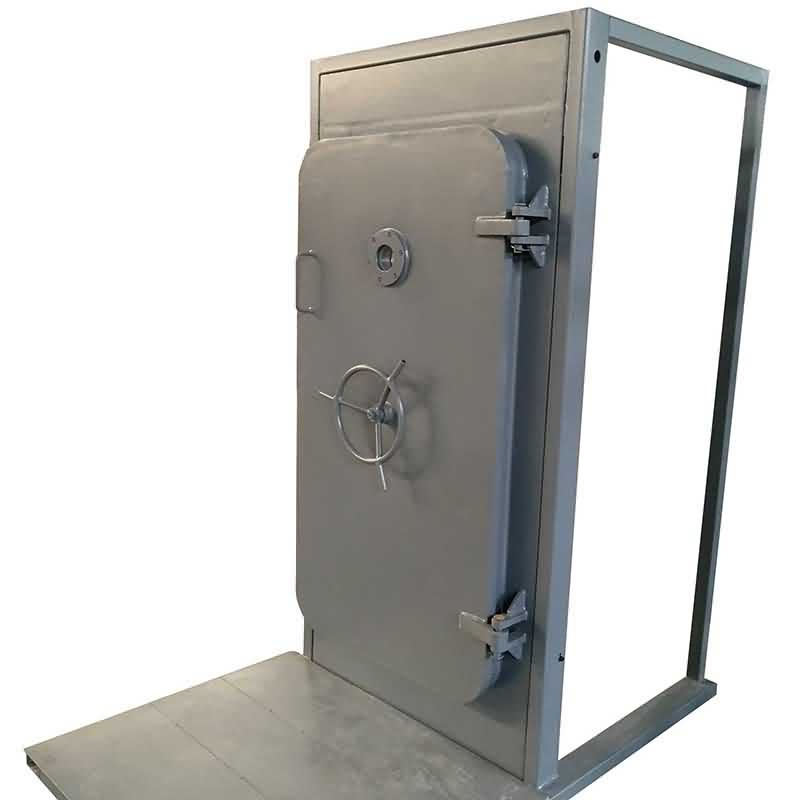

DIAN-BD1702 Steel sealed door,air-tight door,explosion door for coal mine

Short Description:

Product Detail

Product Tags

Steel sealed door,air-tight door,explosion door for coal mine offered by us are highly durable. These doors are available in custom and standard models. High Pressure laminated Doors .

Model number DIAN-BD1702
Panel color Customized
Anti-explosion ability 190Kpa(3mm)/260Kpa(5mm)
Open style Manual, Swing

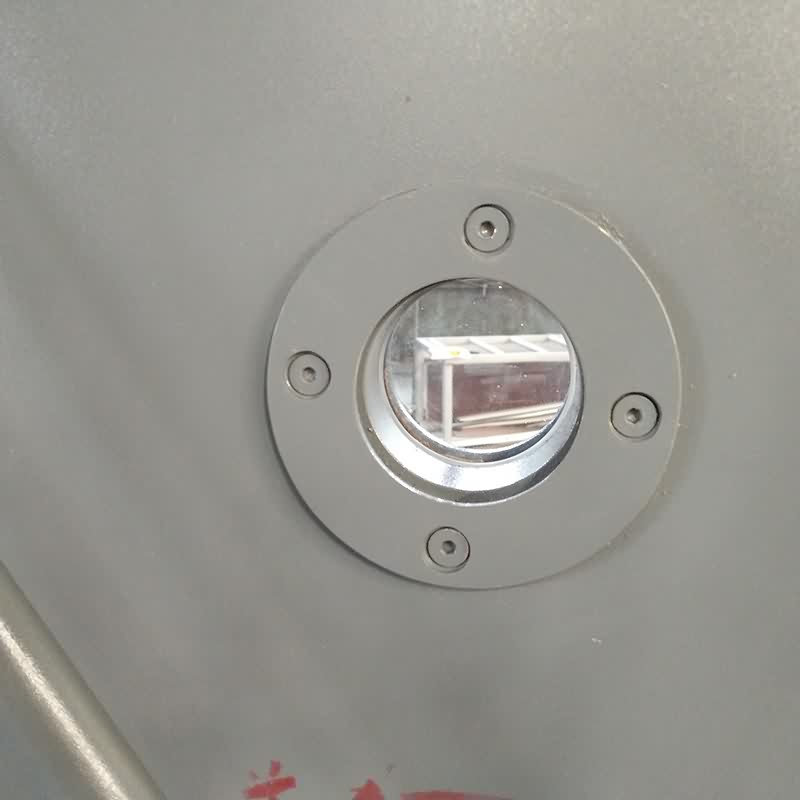

portholes Explosion-proof glass
Application Army, coal mine ,power station, etc.
Surface treatment Powder-coat
Lock option Industrial lock system
Panic Heavy duty steel panic
Seal Rubber sealing strip
Door size High:2100mm-2700mm;Wide:800mm-1800mm
Steel plate Thickness 3mm / 5mm
Panel thickness Standard 60mm (customizable)
Weight 90~135kg/
Door leaf material: 3mm/5mm Carbon steel panel on both side
Skeleton material: 50 * 50 * 5/3 mm square skeleton, skeleton small grid area is not more than 0.3 square meters.
Door frame material: 50 * 100 * 5/3 mm rectangular tube production, set the installation hole and hinge welding parts to strengthen the production of anti-riot edge and buffer seal
Filler rock wool (mineral wool)
Packing & Delivery
Packing Plastic Protection Foam between each sections. Wooden case or carton packing
Delivery time 15~30 days after receive the deposit
MOQ 1 set
