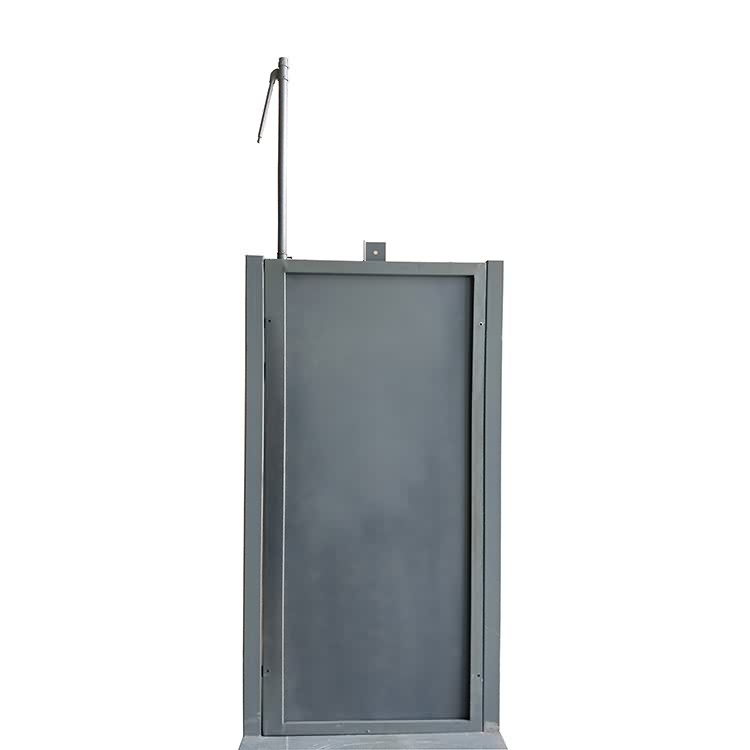

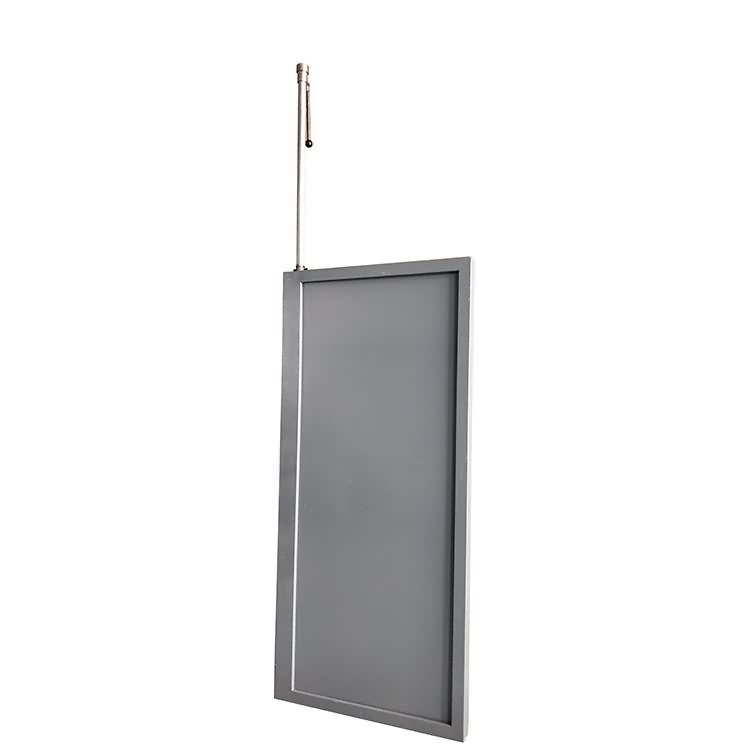

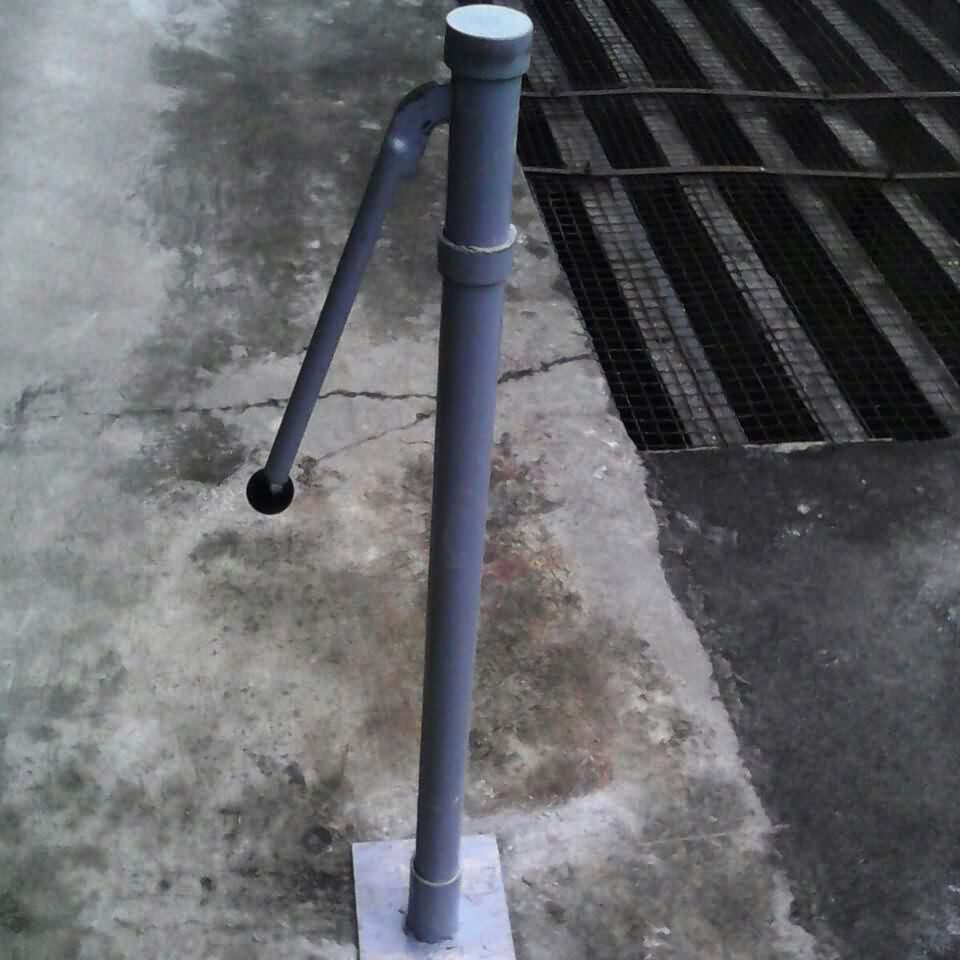

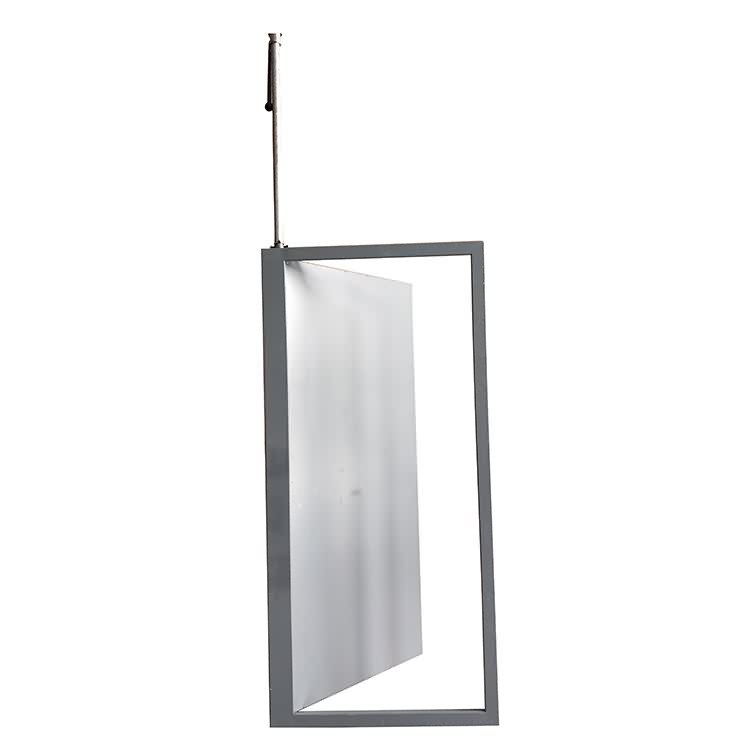

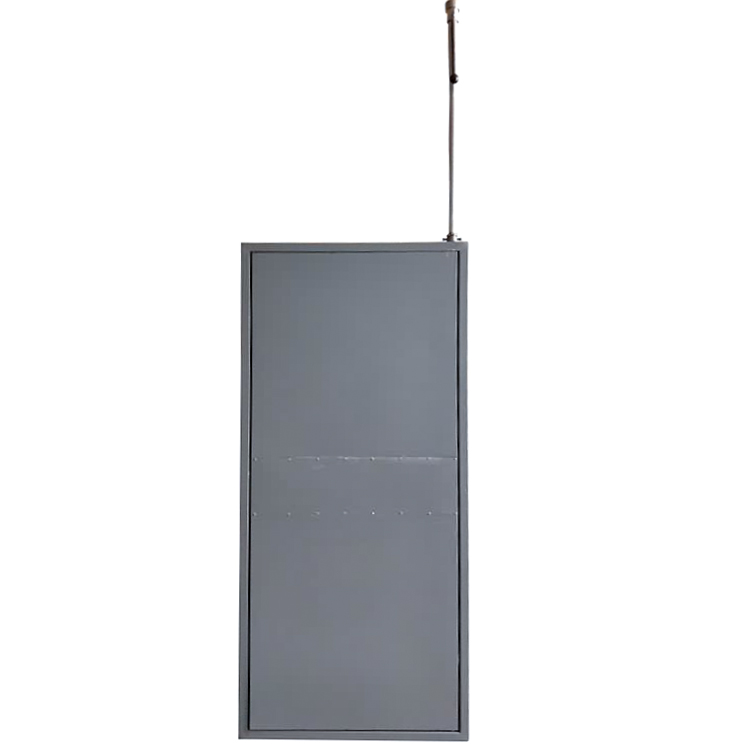

DIAN-PD1903 Long Shaft Swing Prison Door

Short Description:

Product Detail

Product Tags

Fully enclosed electric sliding door is constructed from two 1.5 mm steel skins and steel skeleton , filled with PU foam inside.

The door leaf has two hidden hinges and 3 bolts on the open side with effective

extension length of 30.1mm.

Two door bolts of 14mm diameter installed respectively on the upside and downside of the door leaf with effective extension length of 15.0 mm.

Mechanical security lock is installed on the flush door leaf,and 3.0mm thick

reinforced steel plate is installed on the mounting area.

The center point of the vision panel is 1450mm from the side of the door plate which is set in the middle.

Model number  DIAN-PD1903
Raw material Carbon steel
Internal Filling Polyurethane foam
Door Frame 2.0 mm carbon steel
Door Plate 1.5 mm carbon steel
Channel size 800mm*1900mm
Vision panel size 120mm*70mm
Tensile strength 345MPa
Surface treatment Powder coating
Open style Manual driven
Qualifications By Ministry of Public Security
Security Performance Super structure and enhances the safety of the prison
Hinge Make door switch freely and extend service life
Feature Anti-theft, closeness, sound and heat insulation.
