DIAN-PD1902 Dual-structure Electric Sliding Prison Door
High Quality Electric Steel Security Guard Door

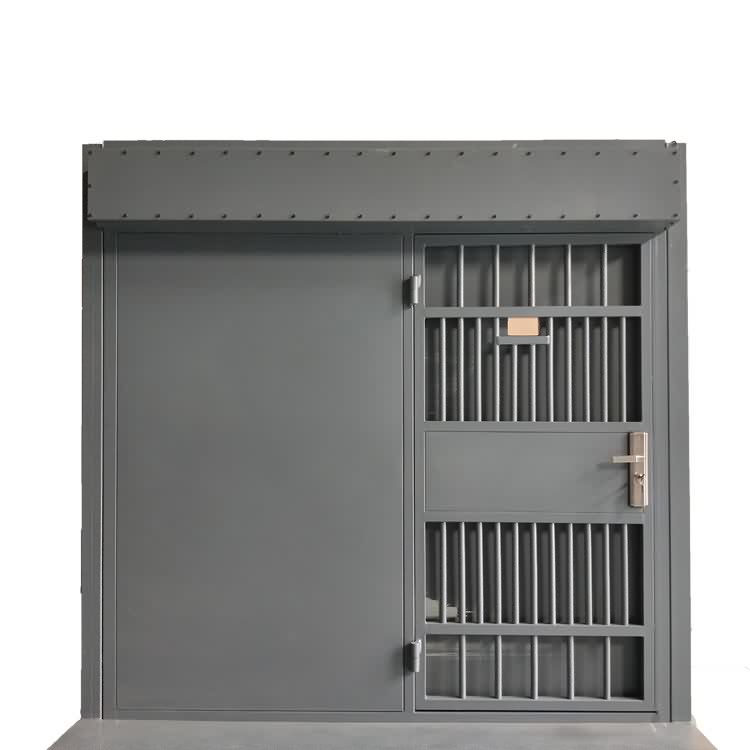

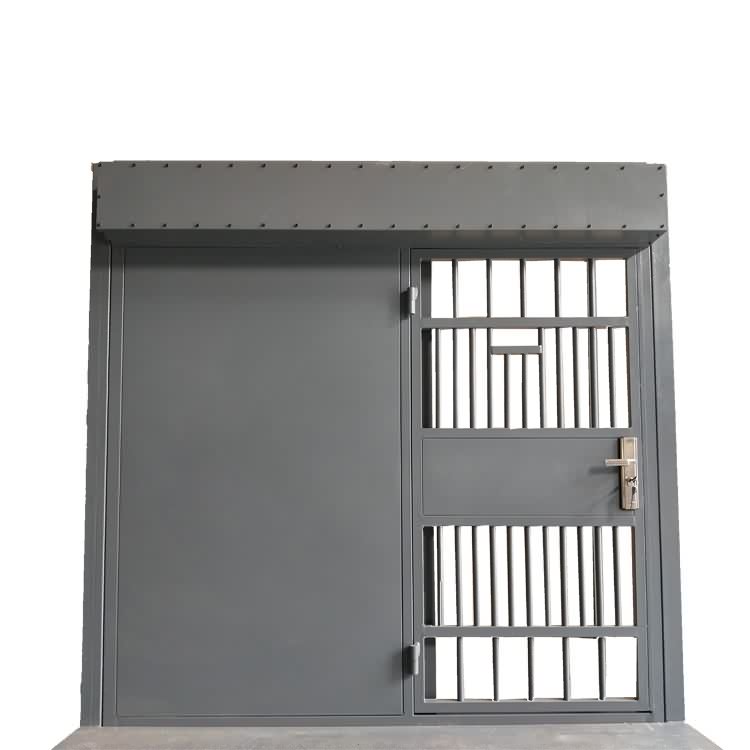

Dual-structure electric prison door consists of one manual driven outer cell gate and electrically driven fully enclosed sliding internal door .
Fully enclosed electric sliding door is constructed from two 1.5 mm steel skins and steel skeleton , filled with PU foam inside.
The operating system of door plate includes electric machine, drive chain,hanging wheel and etc hidden in the drive box.
The plate of drive box constructed from 2.0mm thick steel using specialtools to control the opening and closing.
The doors are fitted with smart lock controls to lock the doors, equipped with emergency opening keys.
The bottom guide rail of sliding door constructed from 2.0mm bend steel skin.
The door plate is equipped with anti-trap function and warning function.
The center point of the vision panel is 1450mm from the side of the door plate which is set in the middle.

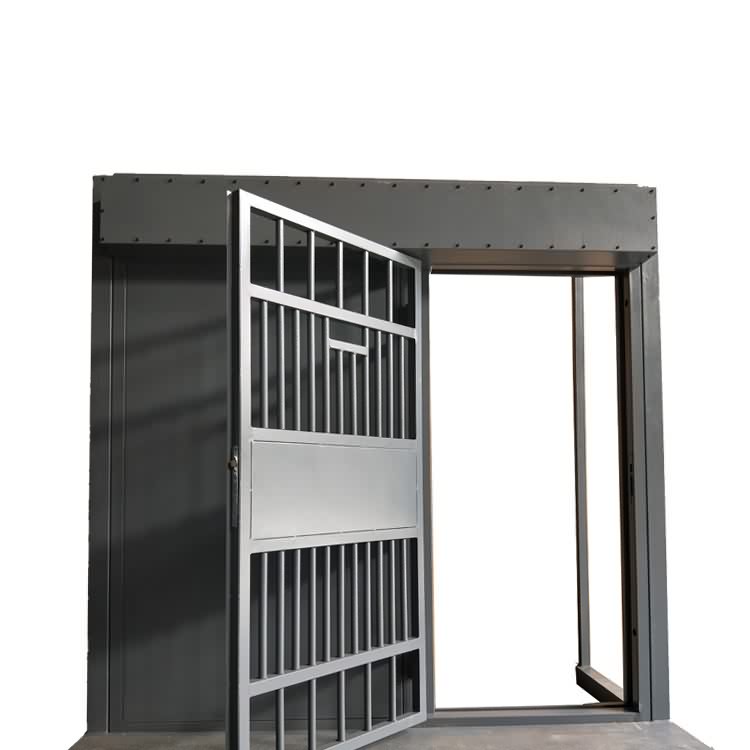

The enclosed part of flush cell gate is sequentially constructed from 1.5 mm steel skin ,steel skeleton and 1.5mm steel skin .

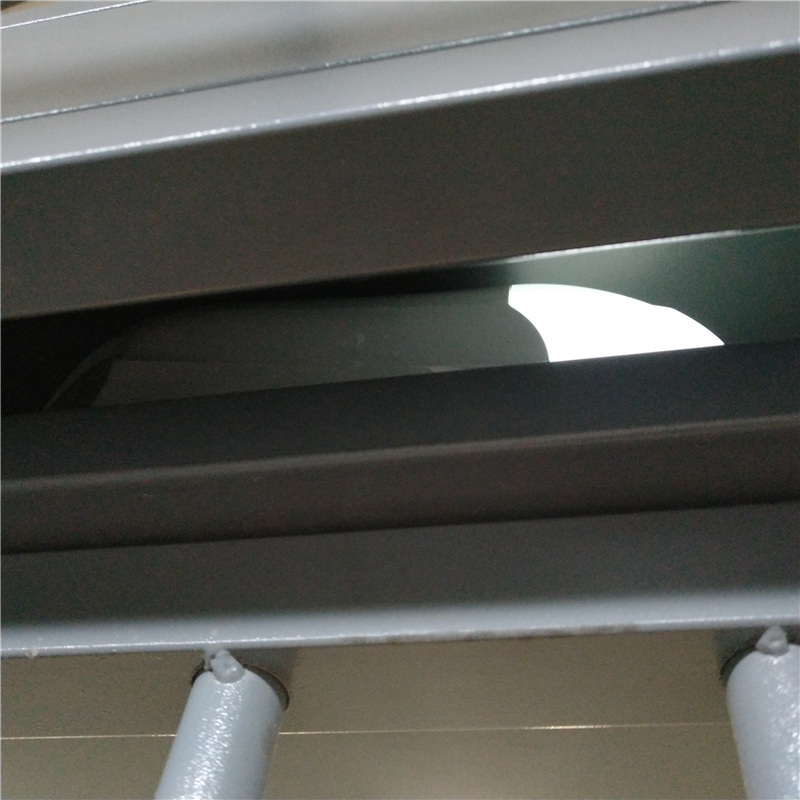

The grille constructed from circular steel tube with diameter of 25 mm in portrait and square steel tube with 40mm*40mm*1.5mm in horizontals.

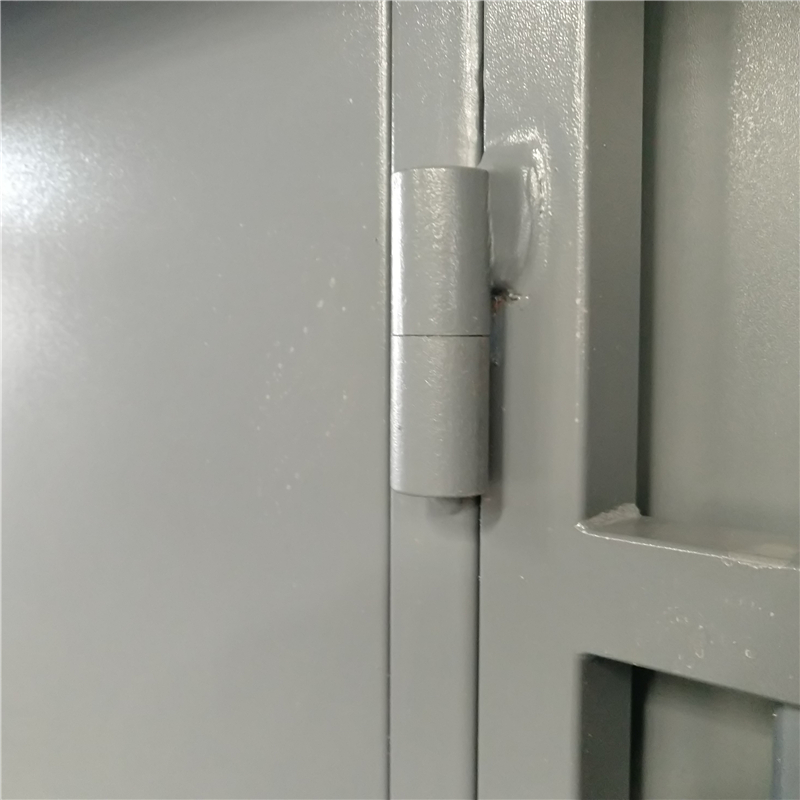

The door leaf has two hinges and 3 lock tongues on the open side with effective extension length of 30.1mm.
Mechanical security lock is installed on the flush cell gate, and 3.0mm thick reinforced steel plate is installed on the mounting area.
|Raw material||Carbon steel|
|Internal Filling||Polyurethane foam|
|Door Frame||2.0 mm carbon steel|
|Door Plate||1.5 mm carbon steel|
|Vision panel size||120mm*70mm|
|Surface treatment||Powder coating|
|Open style||Manual driven|
|Opening time (sliding door)||7.0s (Power cuts lock automatically)|
|Closing time(closing time)||7.1s (Power cuts lock automatically)|
When the opening side meets 40N resistance, the door stops and gives an alarm.
|Qualifications||By Ministry of Public Security|
|Security Performance||Super structure and enhances the safety of the prison|
|Hinge||Make door switch freely and extend service life|
|Feature||Anti-theft, closeness, sound and heat insulation.|
