DIAN-F1603 special type fire rated roller shutter

Short Description:


Product Detail

Product Tags

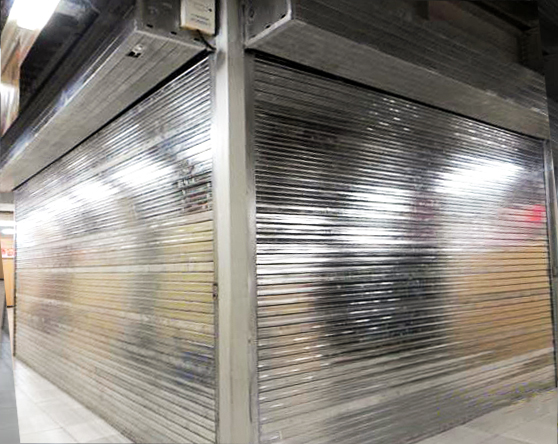

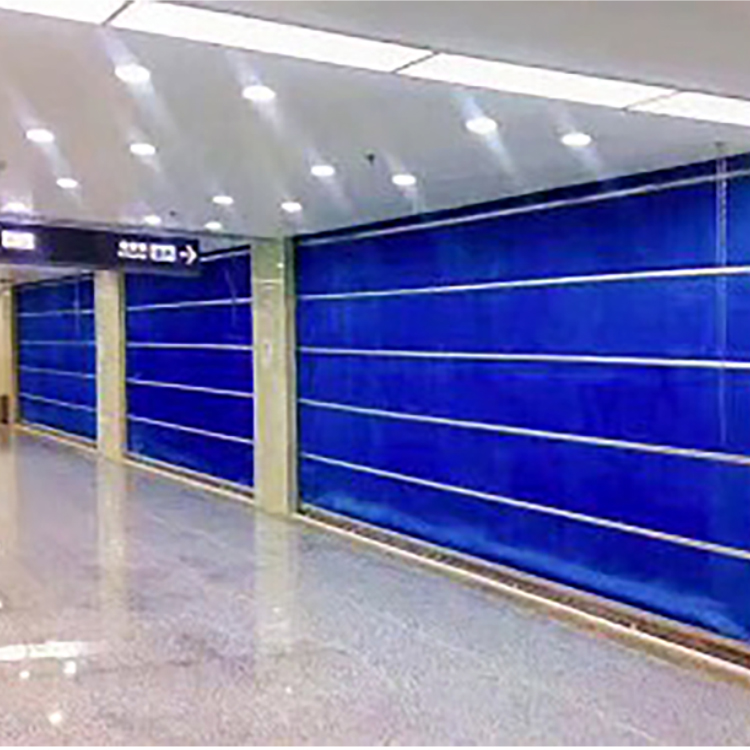

The product is very suitable for sealing large halls, commercial buildings, potentially fire- and explosion hazard atmospheres, office buildings and shopping centres. The roller shutter automatically closes after fire alarm, when connected to a fire alarm system. The special flame trap prevents flames coming through.



Model number DIAN-F1603
Panel color Customized
Refractory limit time 3 hours

Opening and closing speed

5.6~6.4m/min

Operating noise 73dB
Curtain protection Be filled with rock wool

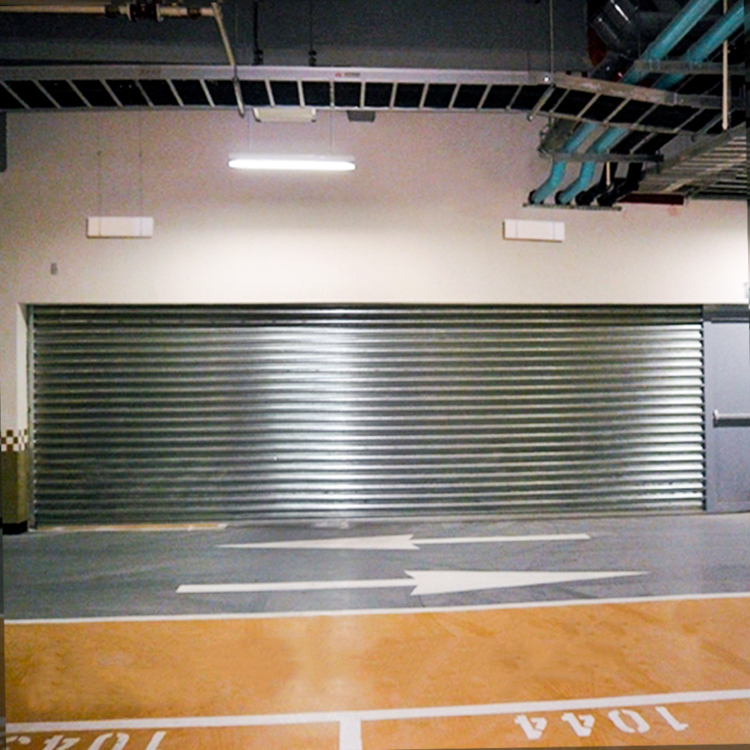

Application Commercial Building, Industrial Building, such as hotel, underground garage
Surface treatment Be treated with galvanizing or baking oil
Motor Option 600kg-2000kg, the power of Motor is according to the door weight.
Dimensions
Door size Customized
Curtain Thickness 0.8mm
 Guide rail 1.5mm
Canopy thickness 0.8mm
Material
Panel Material Galvanized steel
Accessories Material Galvanized steel
Performance
Wind-resistant performance 490Pa
Smoke prevention 0.15m³/(㎡*min
Packing & Delivery
Packing Plastic Protection Foam between each sections. Wooden case or carton packing
Delivery time 15~30 days after receive the deposit
MOQ 1 set
