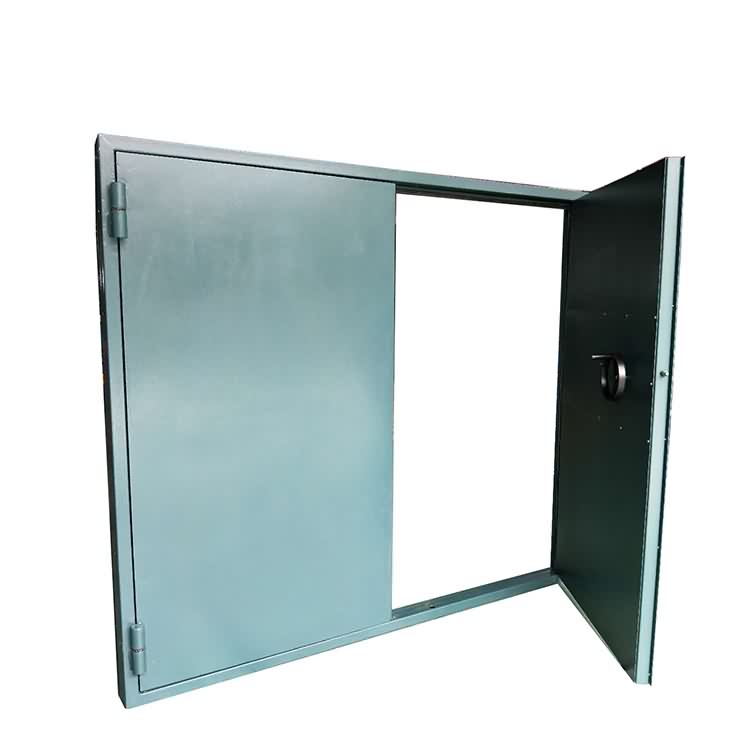

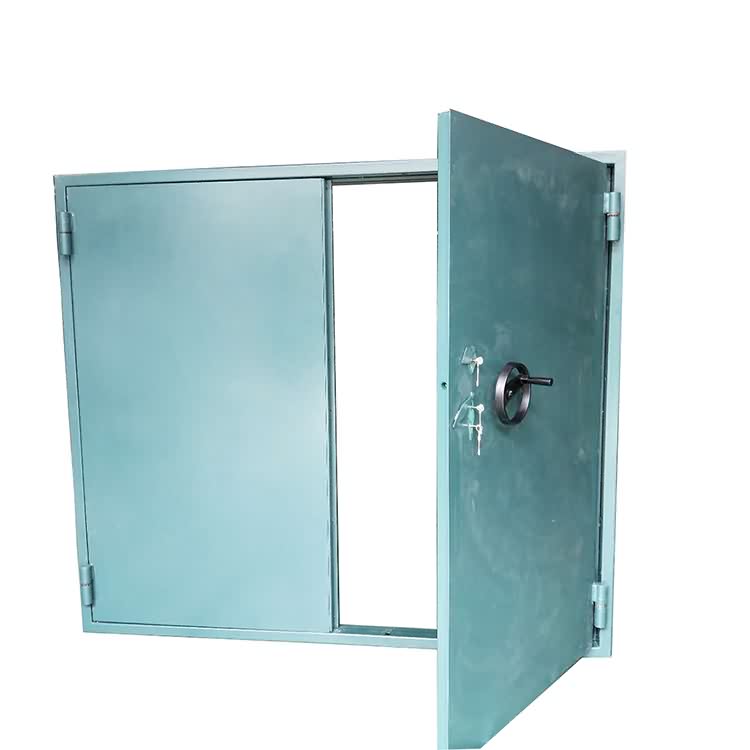

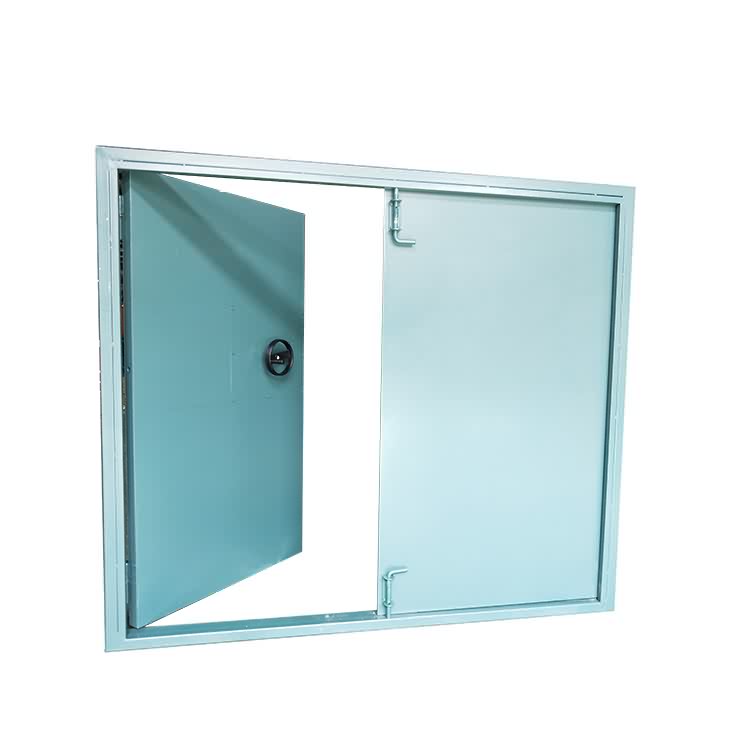

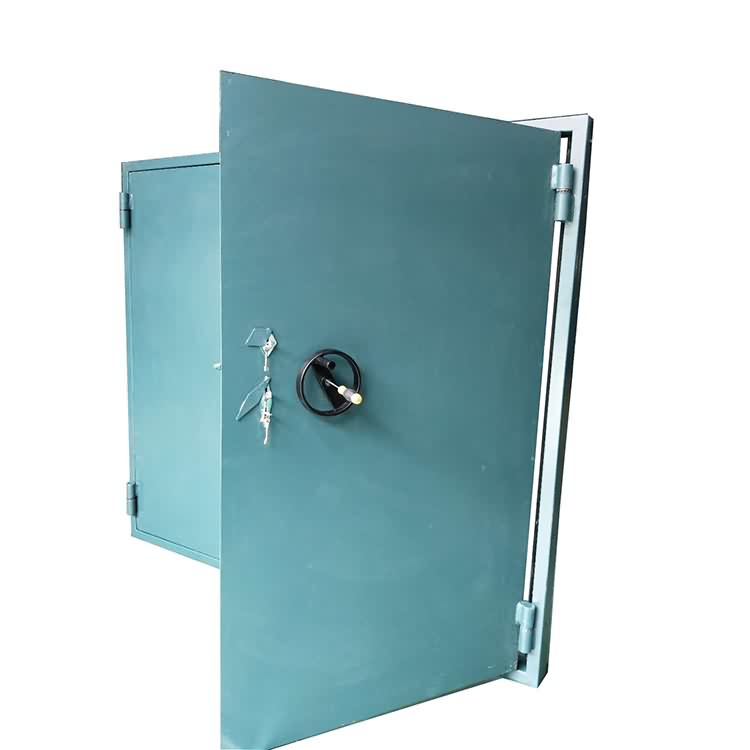

A blast door is a door and frame that are engineered to resist the pressure and rebound forces of a nearby detonation.
| Model number | DIAN-BD1708 |
| Panel color | Customized |
| Anti-explosion ability | 190Kpa(3mm)/260Kpa(5mm) |
| Release pressure ability | 10Kpa≤pressure≤0.3 Mpa |
| Open style | Manual, Swing |
| Steel windows | Explosion-proof steel windows |
| Application | Army, coal mine ,power station, etc. |
| Surface treatment | Powder-coat |
| Lock option | Industrial lock system |
| Panic | Heavy duty steel panic |
| Seal | Rubber sealing strip |
| Dimensions | |
| Door size | High:2100mm-2700mm;Wide:800mm-1800mm |
| Steel plate Thickness | 3mm / 5mm |
| Panel thickness | Standard 60mm (customizable) |
| Weight | 90~135kg/㎡ |
| Material | |
| Door leaf material: | 3mm/5mm Carbon steel panel on both side |
| Skeleton material: | 50 * 50 * 5/3 mm square skeleton, skeleton small grid area is not more than 0.3 square meters. |
| Door frame material: | 50 * 100 * 5/3 mm rectangular tube production, set the installation hole and hinge welding parts to strengthen the production of anti-riot edge and buffer seal |
| Filler | rock wool (mineral wool) |
| Packing & Delivery | |
| Packing | Plastic Protection Foam between each sections. Wooden case or carton packing |
| Delivery time | 15~30 days after receive the deposit |
| MOQ | 1 set |
Professional Manufacturer for Superior Multi-Purpose Blast Security Doors. Learn More
